What is Ultrasound?
What is an Echocardiogram?
What is Doppler?
What information does it provide?
How safe is it?
How long does it take?
How quickly do I get the results and what do they mean?
What is Ultrasound:
Sound is made up of several different frequency waves. The very high frequency range is inaudible to the human ear and is known as ultrasound. Ultrasound was used by the Navy during World War II to
detect submarines, and is widely used by fisherman to help find schools of fish.
In each case, an ultrasound machine is used. With the help of a microphone-shaped device (known as a transducer) ultrasound waves are created and beamed through water. When the beam encounters a boundary or interface between liquid (water) and a solid (submarine or fish) with a different density or compactness, part of the beam is reflected back to the transducer. The remaining waves move through the object and reach the back boundary between solid and water. Here, some more of the ultrasound waves are reflected back to the transducer. In other words, the transducer transmits ultrasound and constantly receives waves that are reflected back every time the beam travels from one density to another.
The reflected ultrasound waves are collected and analyzed by the machine. Determining the amount of time it took for the beam to travel from and to the transducer (plus the consistency and changes in position of the different structures that it passed through), the ultrasound machine can determine the shape, size, density and movement of all objects that lay in the path of the ultrasound beam. The information is presented "real time" on a monitor screen and can also be printed on paper or recorded on tape, a CD or a computer disk. That is how warships detect submarines, fishermen identify choice fishing spots, an obstetrician evaluates the fetus of a pregnant woman, and a cardiologist examines the heart of a patient.
What is an Echocardiogram: An echocardiogram is a test in which ultrasound is used to examine the heart. The equipment is far superior to that used by fishermen. In addition to providing single-dimension images, known as M-mode echo that allows accurate measurement of the heart chambers, the echocardiogram also offers far more sophisticated and advanced imaging. This is known as two- dimensional (2-D) Echo and is capable of displaying a cross-sectional "slice" of the beating heart, including the chambers, valves and the major blood vessels that exit from the left and right ventricle
An echocardiogram can be obtained in a physician's office, in the hospital or at the patient’s bed house. For a resting echocardiogram (in contrast to a stress echo or TEE, discussed elsewhere) no
special preparation is necessary. Clothing from the upper body is removed and covered by a gown or sheet to keep you comfortable and maintain the privacy of females. The patient then lies on an
examination table or a hospital bed
Sticky patches or electrodes are attached to the chest and shoulders and connected to electrodes or wires. These help to record the electrocardiogram (EKG or ECG) during the echocardiography test. The EKG helps in the timing of various cardiac events (filling and emptying of chambers). A colorless gel is then applied to the chest and the echo transducer is placed on top of it. The echo technologist then makes recordings from different parts of the chest to obtain several views of the heart. You may be asked to move from your back and to the side. Instructions may also be given for you to breathe slowly or to hold your breath. This helps in obtaining higher quality pictures. The images are constantly viewed on the monitor. It is also recorded on photographic paper and on digital media. The images offer a permanent record of the examination and are reviewed by the physician prior to completion of the final report.
What is a Doppler Examination? Doppler is a special part of the ultrasound examination that assesses blood flow (direction and velocity). In contrast, the M-mode and 2-D Echo evaluates the size, thickness and movement of heart structures (chambers, valves, etc.). During the Doppler examination, the ultrasound beams will evaluate the flow of blood as it makes its way through and out of the heart. This information is presented visually on the monitor (as color images or grayscale tracings and also as a series of audible signals with a swishing or pulsating sound)..
Indications for transthoracic examination
– Symptoms potentially due to suspected cardiac etiology.
– Assessment of known or suspected adult congenital heart disease.
– Evaluation of suspected complication of myocardial ischemia/infarction.
– Initial evaluation of murmur in patients for whom there is a reasonable suspicion of valvular or structural heart disease.
– Initial evaluation of prosthetic valve for establishment of baseline after placement.
– Initial evaluation of suspected infective endocarditis with positive blood cultures or a new murmur.
– Evaluation of cardiac mass (suspected tumor or thrombus).
– Evaluation of pericardial conditions: i.e. pericardial effusion, constrictive pericarditis.
– Known or suspected Marfan disease for evaluation of proximal aortic root and/or mitral valve.
– Initial evaluation of known or suspected cardiomyopathy.
information does Echocardiography and Doppler provide?
Echocardiography is an invaluable tool in providing the doctor with important information about the following:
Size of the chambers of the heart, including the dimension or volume of the cavity and the thickness of the walls. The appearance of the walls may also help identify certain types of heart disease that predominantly involve the heart muscle. In patients with long standing hypertension or high blood pressure, the test can determine the thickness and "stiffness" of the LV walls. When the LV pump function is reduced in patients with heart failure, the LV and RV tends to dilate or enlarge. Echocardiography can measure the severity of this enlargement. Serial studies performed on an annual basis can gauge the response of treatment.
Pumping function of the heart can be assessed by echocardiography. One can tell if the pumping power of the heart is normal or reduced to a mild or severe degree. This measure is known as an ejection fraction or EF. A normal EF is around 55 to 65%. Numbers below 45% usually represent some decrease in the pumping strength of the heart, while numbers below 30 to 35% are representative of an important decrease.
Echocardiography can also identify if the heart is pumping poorly due to a condition known as cardiomyopathy (pronounced cardio-myo-puth-e), or if one or more isolated areas have depressed movement (due to prior heart attacks). Thus, echocardiography can assess the pumping ability of each chamber of the heart and also the movement of each visualized wall. The decreased movement, in turn, can be graded from mild to severe. In extreme cases, an area affected by a heart attack may have no movement (akinesia, pronounced a-kine-neez-ya), or may even bulge in the opposite direction (dyskinesia, pronounced dis-kine-neez-ya). The latter is seen in patients with aneurysm (pronounced an-new-riz-um ) of the left ventricle or LV. It must be remembered that LV aneurysm due to an old heart attack does not usually rupture or "burst."
Valve Function: Echocardiography identifies the structure, thickness and movement of each heart valve. It can help determine if the valve is normal, scarred from an infection or rheumatic fever, thickened, calcified (loaded with calcium), torn, etc. It can also assess the function of prosthetic or artificial heart valves.
The additional use of Doppler helps to identify abnormal leakage across heart valves and determine their severity. Doppler is also very useful in diagnosing the presence and severity of valve stenosis (pronounced stee-no-sis) or narrowing. Remember, unlike echocardiography, Doppler follows the direction and velocity of blood flow rather than the movement of the valve leaflets or components. Thus, reversed blood direction is seen with leakages while increased forward velocity of flow with a characteristic pattern is noted with valve stenosis.
Echocardiography is used to diagnose mitral valve prolapse (MVP), while Doppler identifies whether it is associated with leakage or regurgitation of the mitral valve (MR). The presence of MR frequently prompts the use of antibiotics prior to any dental or non-sterile surgical procedure. Such action helps reduce the rare complication of valve infection.
Volume status: Low blood pressure can occur in the setting of poor heart function but may also be seen when patients have a reduced volume of circulating blood (as seen with dehydration, blood loss, use of diuretics or "water pill.", etc.). In many cases, the diagnosis can be made on the basis of history, physical examination and blood tests. However, confusion may be caused when patients have a combination of problems. Echocardiography may help clarify the confusion. The inferior vena cava (the major vein that returns blood from the lower half of the body to the right atrium) is distended or increased in size in patients with heart failure and reduced in caliber when the blood volume is reduced.

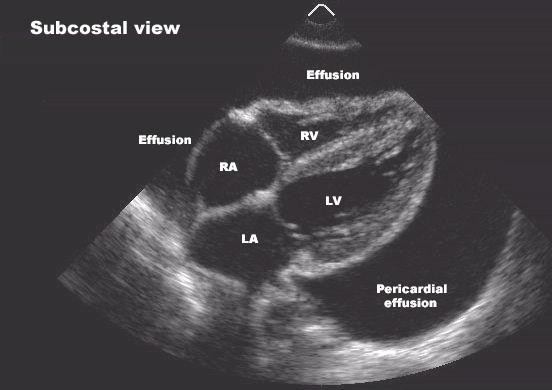

Other Uses: Echocardiography is useful in the diagnosis of fluid in the pericardium (the sac that surrounds the heart). It also determines when the problem is severe and potentially life-threatening. Other diagnoses (plural for diagnosis) made by Doppler or echocardiography include congenital heart diseases, blood clots or tumors within the heart, active infection of the heart valves, abnormal elevation of pressure within the lungs, etc.
How safe is echocardiography? Echocardiography is extremely safe. There are no known risks from the clinical use of ultrasound during this type of testing.
How long does it take? A brief examination in an uncomplicated case may be done within 15 to 20 minutes. The additional use of Doppler may add an additional 10 to 20 minutes. However, it may take up to an hour when there are multiple problems or when there are technical problems (for example, patients with lung disease, obesity, restlessness, and significant shortness of breath may be more difficult to image).
I expect to receive the results? If a doctor is
present during the test or reviews it while you are still in the office, you may be able to get the results before you leave. However, the doctor is not routinely present during the test and you may
have to wait from one to several days before the images have been reviewed by a physician and the results are sent to you by phone or mail. Some physicians will discuss your case before the study is
performed and will contact you if there are significant unexpected findings. For example, if you are expected to have a finding or known to have a given disease, your physician may indicate that he
or she will call you only if there are significant unexpected findings. You may also be contacted if echocardiography reveals a finding that influences a change in treatment. For example, the
presence of a distended inferior vena cava (discussed above) may result in increasing the dose of your diuretic or water pill, if it is indicated by other aspects of your condition.
If you are anxious or confused about the results feel free to contact the physician's office staff. They can usually clarify a question for you.
